Our E-Mug Energy Services

Do You Know This?

1 Hour of sun light receives to Earth = Solar Energy Utilized by the Humans for 1 Year.

Complete Turnkey Services

System design, integration and installation & commissioning of solar off Grid/Grid power plants.

Solar PV Modules Manufacturing

High transmissivity 3.2mm tempered glass for enhanced stiffness and impact resistance.

Solar Water Heating System

Robust, anodized aluminum frame for extended outdoor use with special deign of self-fixing corner keys.

We at E-Mug Manufacturers and Supplies

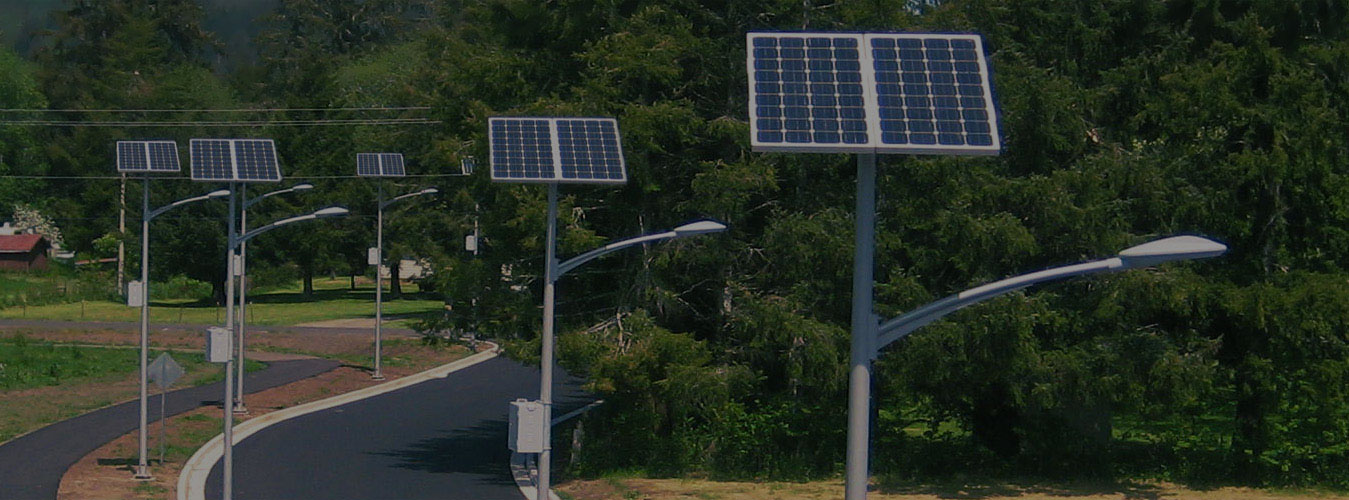

  •   Solar LED based Street Lighting Systems.

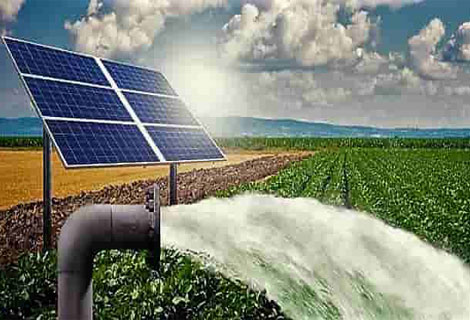

  •    Solar Water Pumping SystemsSolar.
  •    Solar Domestic Power Packages/Inverters.

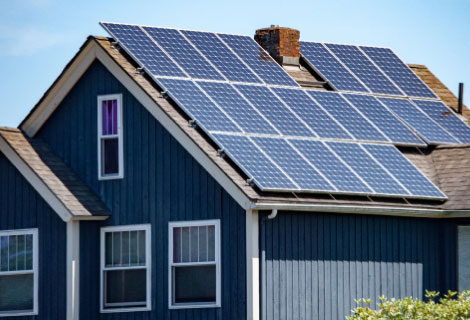

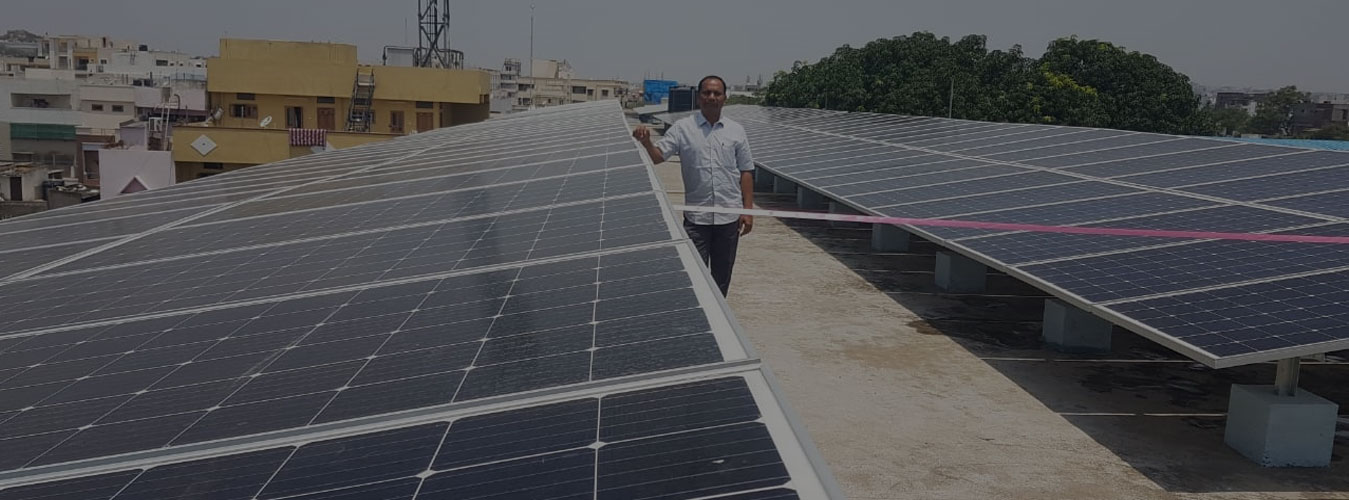

  •    Solar Off grid/On-Grid, Roof top Power Plants.
  •    EPC services for Mega Watt Scale Power Plants.

Advantage with e-mug



  •   Vertically-integrated global company and existing for thepast 19 years.
  •   Provide turnkey services from concept and design toinstallation, start up and
          long-term service and maintenance.
  •   Established customer support division for providing aftersales and service.
  •   E-mug is a socially responsible, global energy company.

Our Turnkey Solution


Site survey And Proposal
Design And System Engg.
SystemIntegration
System Installation
Operation And Maintenance

Consultation.

Site assessment and Solar analysis.

System design and installation.

Utility and Building permits.

Rebate paperwork.

Service and Maintenance.

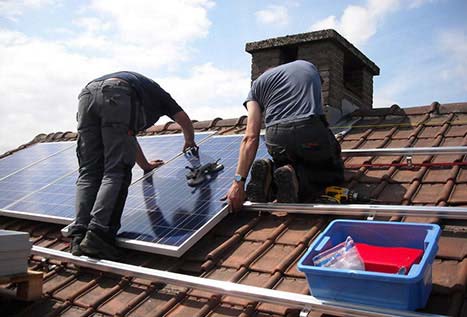

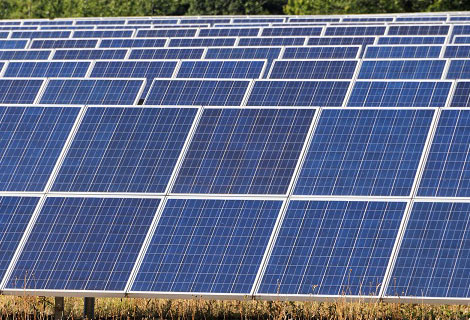

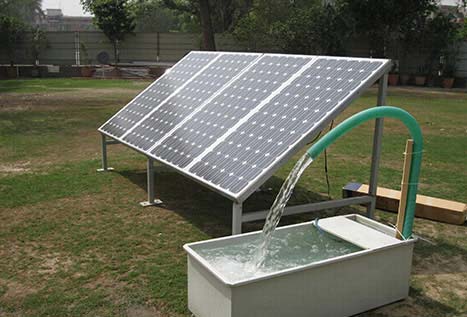

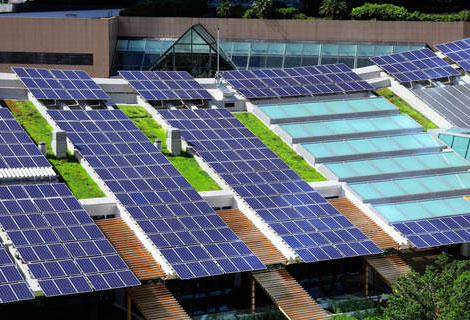

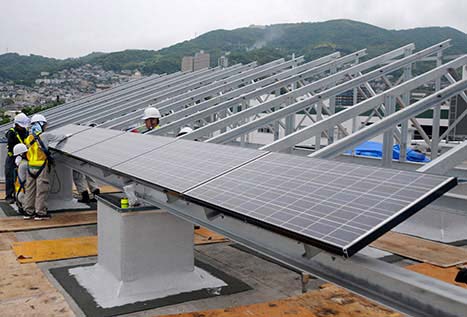

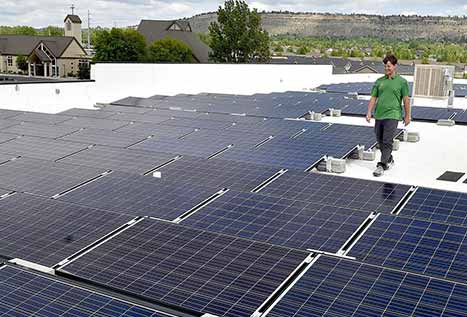

Photo Gallery


Solar Hybrid Inverter Specifications

S.No Model Solar Panel Capacity Battery Capacity Inverter Capacity Operating Hours (Load)
1 H-150 Wp 12V/150 Wp 1 Nos. 12V/100Ah 12V/500 VA 14 W CFL- 4 Nos. For 4 Hrs
75 W Fan - 2 Nos. For 2 Hrs
100 W TV- 1 No 2 Hrs.
2 H-300 Wp 12V/150 Wp 2 Nos. 12V/200Ah 12V/800 VA 14 W CFL- 4 Nos. For 6 Hrs
75 W Fan - 2 Nos. For 5 Hrs
100 W TV- 1 No 4 Hrs.
3 H-500 Wp 12V/100 Wp 5 Nos. 12V/150Ah 2 Nos. 24V/800 VA 14 W CFL- 4 Nos. For 4 Hrs
75 W Fan - 4 Nos. For 5 Hrs
100 W TV- 1 No 4 Hrs.
4 H-1 kWp 24V/250 Wp 4 Nos. 24V/150Ah 2 Nos. 24V/1.5 kVA 14 W CFL- 5 Nos. For 6 Hrs
75 W Fan - 5 Nos. For 6 Hrs
100 W TV- 1 No For 6-8Hrs
Refrigerator- 165 LNo 6-8 Hrs.
5 H-2 kWp 24V/250 Wp 8 Nos. 48V/300Ah 1 Nos. 48V/2 kVA 40 W Fuorescent Lamp- 6 Nos. For 6 Hrs
75 W Ceiling Fan, 48" Sweep-6 Nos. For 6 Hrs
100 W TV, Colour 21", Standard- 1 Nos For 6Hrs
160 W Refrigerator- 180 Ltrs, Frost Free- 1 Nos Fot 10 Hrs.
250 W Personal Computer - 1 Nos For 6 Hrs.
6 H-3 kWp 24V/250 Wp 12 Nos. 48V/450Ah. 48V/3 kVA 40 W Fuorescent Lamp- 6 Nos. For 8 Hrs
75 W Ceiling Fan, 48" Sweep-6 Nos. For 8 Hrs
100 W TV, Colour 21", Standard- 2 Nos For 8Hrs
160 W Refrigerator, 180 Ltrs, Frost Free- 1 Nos For 10 Hrs.
250 W Personal Computer - 2 Nos For 6 Hrs.
7 H-4 kWp 24V/250 Wp 16 Nos. 96V/300Ah. 96V/5 kVA 40 W Fuorescent Lamp- 8 Nos. For 8 Hrs
75 W Ceiling Fan, 48" Sweep-8 Nos. For 8 Hrs
100 W TV, Colour 21", Standard- 2 No For 8Hrs
160 W Refrigerator, 180 Ltrs, Frost Free- 2 Nos For 8 Hrs.
250 W Personal Computer - 2 Nos For 8 Hrs.
8 H-5 kWp 24V/250 Wp 20 Nos. 96V/400Ah. 96V/5 kVA 5 Kw Load with 4 Hrs Backup.
9 H-6 kWp 24V/250 Wp 24 Nos. 96V/450Ah. 96V/6 kVA 6 Kw Load with 4 Hrs Backup.
10 H-7 kWp 24V/250 Wp 28 Nos. 120V/450Ah. 120V/7 kVA 7 Kw Load with 4 Hrs Backup.
11 H-8 kWp 24V/250 Wp 32 Nos. 120V/500Ah. 120V/8 kVA 8 Kw Load with 4 Hrs Backup.
12 H-9 kWp 24V/250 Wp 36 Nos. 120V/600Ah. 120V/9 kVA 9 Kw Load with 4 Hrs Backup.
13 H-10 kWp 24V/250 Wp 40 Nos. 120V/600Ah. 120V/10 kVA 10 Kw Load with 4 Hrs Backup.
